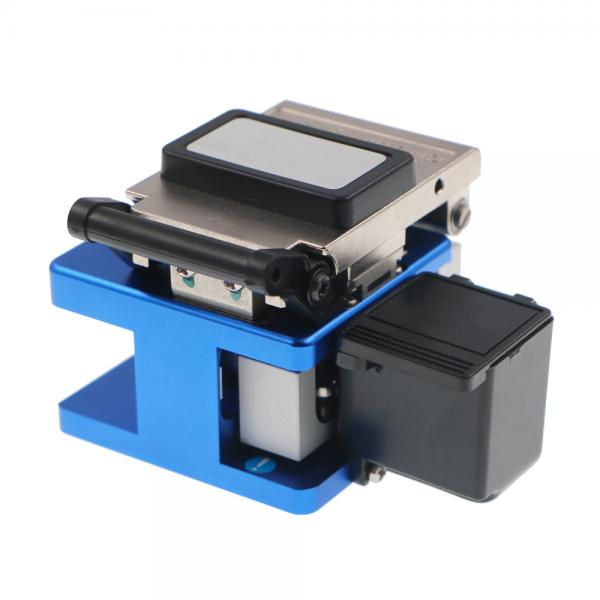

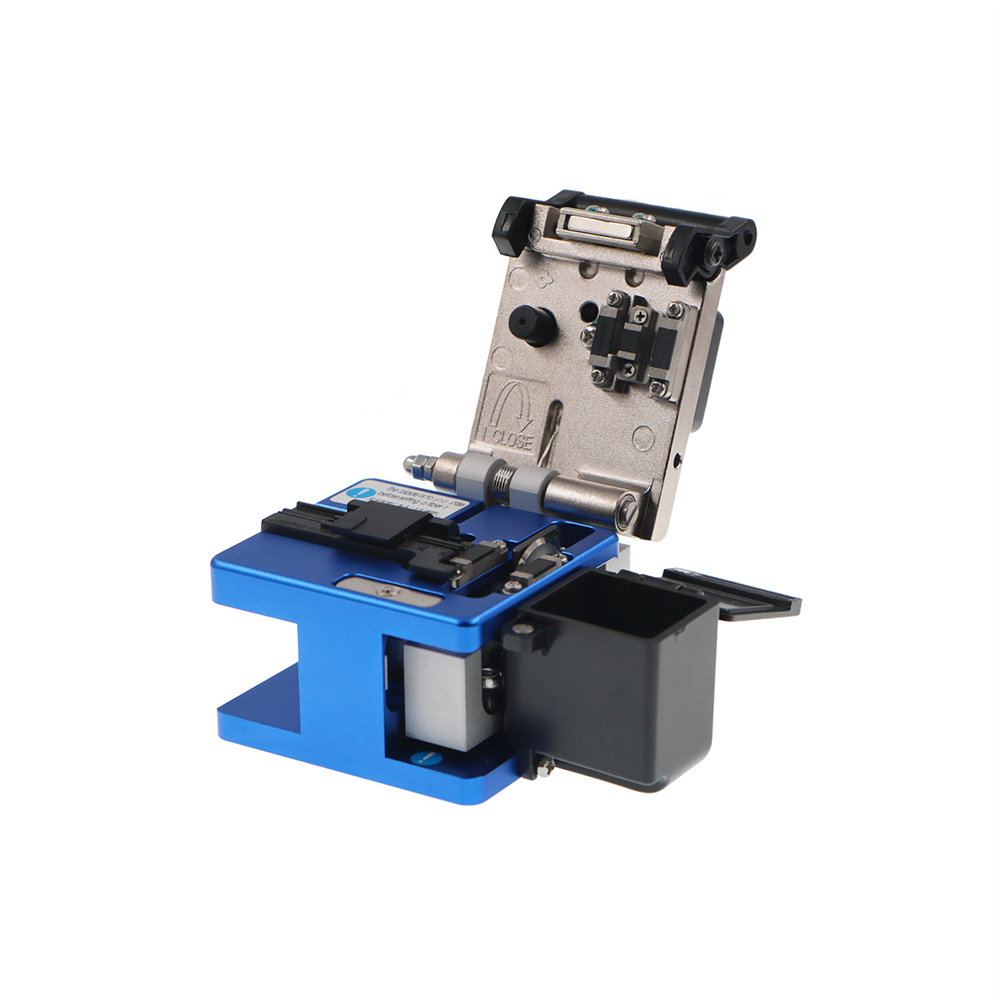

Product Overview

FCST220102 High Precision Fiber Cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 48,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FCST220102 is the latest cleaver . Integral to the unit is a cleave length scale which helps facilitate exact lengths during cleaving.

Product Advantages

  • Prevents Double Scoring of the Fibers.
  • Can Be Operated With Minimal Steps.
  • Has Superior Blade Height and Rotational Adjustment.
  • Used for Single Fiber Cleaving with Fiber Scrap Collection.
  • Precision Blade features 24 blade positions with 2,000 cleavers per position.
  • Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency.

Product Specifications

Construction Description
Bare Fiber Diameter 0.25mm~0.9mm
Outercoat Diameter 125µm
Fiber Type Single tube fiber and Ribbon fiber(exchangeable)
Cleaved Length 9~16mm(φ0.25) 10~16(φ0.9)
Cleaved Angle ≤0.5°
Blade Life 48,000 cleaves
Mode Semiautomatic
Dimension 63mm(W)*76mm(D)*63mm(H)
Weight 430g


FCST220102 high precision fiber cleaver

Construction Description
Blade Dimension φ20mm*4mm
Blade Material Tungsten steel
Blade Life 48,000 cleaves
