FCST221416 OTDR Launch Fiber Cable Box

Product Overview

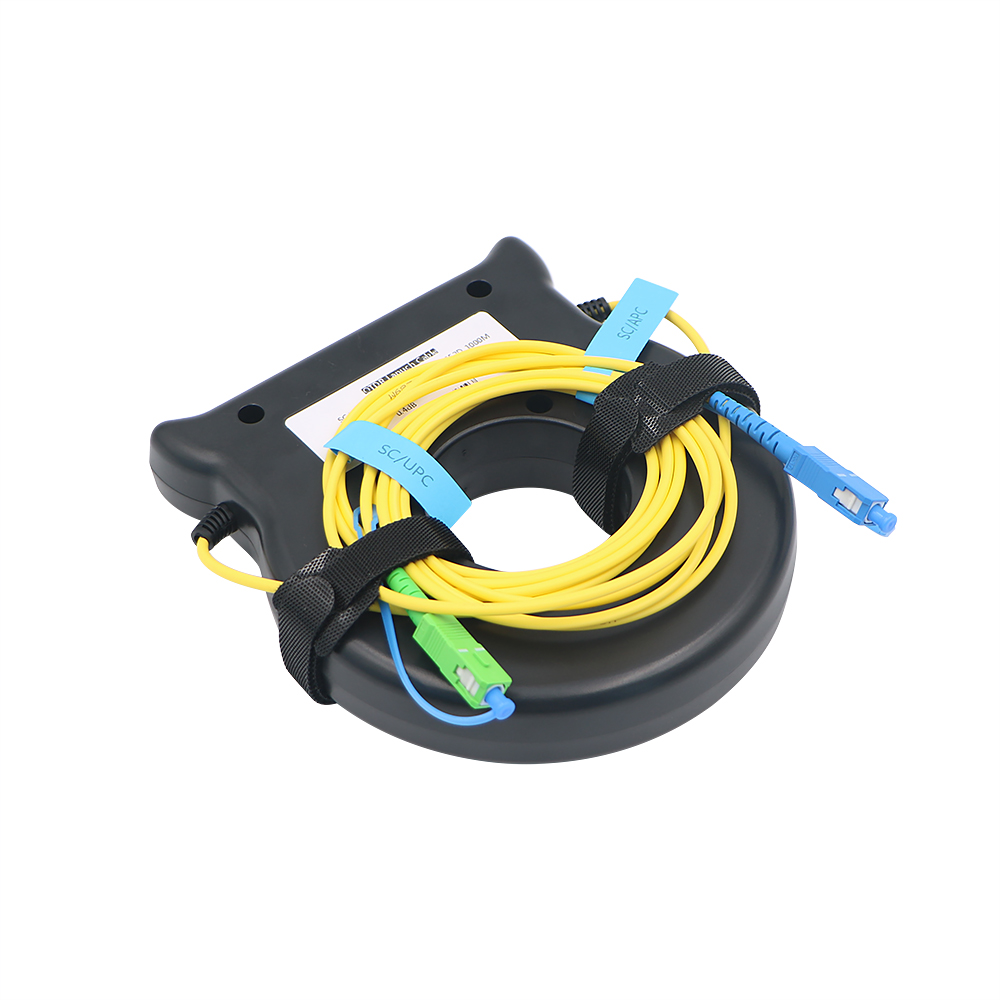

Measuring an insertion loss of the near-end and / or far-end connection of a fiber optic link with an OTDR requires a launch and / or receives test cable. A launch cable, which connects the OTDR to the link under test, reveals the insertion loss and reflectance of the near-end connection. A receive cable, which connects to the far-end of the link, reveals the insertion loss and reflectance of the far-end connection. Launch and receive test cables can range from 0.15km to 1 km (or longer) in length. Because very long test cables are impractical to transport and use, FCST offers coiled lengths of 50 um multimode, 62.5 um multimode, or single-mode fiber packaged in compact rings. Fiber Rings of 1000 m of fiber are ideal for premises fiber network test applications. Fiber Rings of 0.15 km and 1 km of single-mode fiber are designed for broadband, long-haul fiber network test applications.

Product Advantages

• Compact,strong and light.
• Suitable for any OTDR tester.
• Standard length of 150,500,1000.
• Provide various types of connectors.
• Special storage bin design for coupler.
• It is used to eliminate the test blind zone of OTDR.
• Use OTDR to measure the insertion loss and reflectivity of the near-end and far-end connections of the fiber optic line.

Detailed Configuration

Note:

SM — connectors for multimode cables, specify type [ST, SC, FC, LC, E2000, Angled SC, Angled FC, Angled LC, Angled E2000].

MM — connectors for single-mode cables, specify type [ST, SC, Angled SC, FC, Angled FC, LC, Angled LC, E2000 or Angled E2000].Other connector types, fiber types, and fiber lengths will be quoted upon request.

Product Instructions
