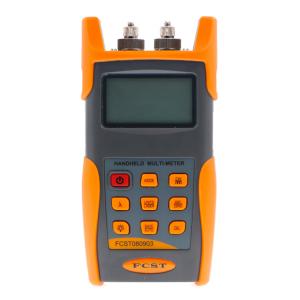

FCST080903 Handheld Optical Multi-Meter

0 reviews
Goods No. FCST080903
Clicks 125
Market price: $273.07
Price $227.57
Twitter Instagram Facebook
FCST080903 Handheld Optical Multi-Meter
FCST080903 Handheld Optical Multi-Meter
$227.57

0 Goods Reviews

0
0
0
0
0

No reviews

Writing Reviews

Please enter your name!
It will appear in the comments.
Please enter a valid email address
Authentication only - No spam is sent.
Please select a rating!
Please write a review!!
Your review must be at least 50 characters.

Product Overview

FCST080903 Handheld Optical Multi-meter Integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit. It can also provide data storage and upload functions. It is widely used in installation ,measurement and maintenance of DDN, Telecom and CATV networks.

Product Advantages

  • Simple function mode switching.
  • High stability of the output power.
  • Data storage function, up to 1000 test records.
  • Automatic wavelength of light source switching.
  • Alkaline Battery and Mini USB Adapter for power supply.
  • USB communication port for saved testing records download.
  • Users could write their own software by the communication protocol provided.

Product Applications

  • DDN Maintenance.
  • CATV Maintenance.
  • Fiber Optic lab testing.
  • Telecom Maintenance.
  • Other Fiber Optic Measurements.

Product Specifications

Construction Description
Model FCST080903A FCST080903C
Optical Power Meter Module
Detector Type InGaAs
Measurement Range (dBm) -70~+6 -50~+26
Rosolution (dB) 0.01
Uncertainty ≤±0.25
linearity (dB) ≤±0.1
Frequency ID Range (Hz) <10K
Optical Light Source Module
Wavelengths(nm) 1310/1550(other wavelengths can be optional)
Typical Ouput Power (dBm) -5
Output Stability (dB,30min,20℃) ≤0.1
Modulation Frequencies(Hz) CW,270,1K,2K
General Specifications Of Multi Meter
Power Supply 3 pcs 1.5V Alkaline Batteries/Mini USB 5V Adapter
Battery Operating Time (h) ≥50 (Both Power Meter and Light Source are working) ≥200(Only Power Meter is working)
Auto-off time (min) 10
Communication Port Mini USB
Operating Temperature (℃) -10~+60
Storage Temperature (℃) -25~+70
Dimension(mm) 175*90*44.5
Weight (g) 265

Standard Packages

Model Includes
All FCST080903 Models FCST080903 Handheld Optical Multi-meter, Mini USB cable,5V USB Adapter,CD,User Manual, Cotton swabs and Soft carrying case.
