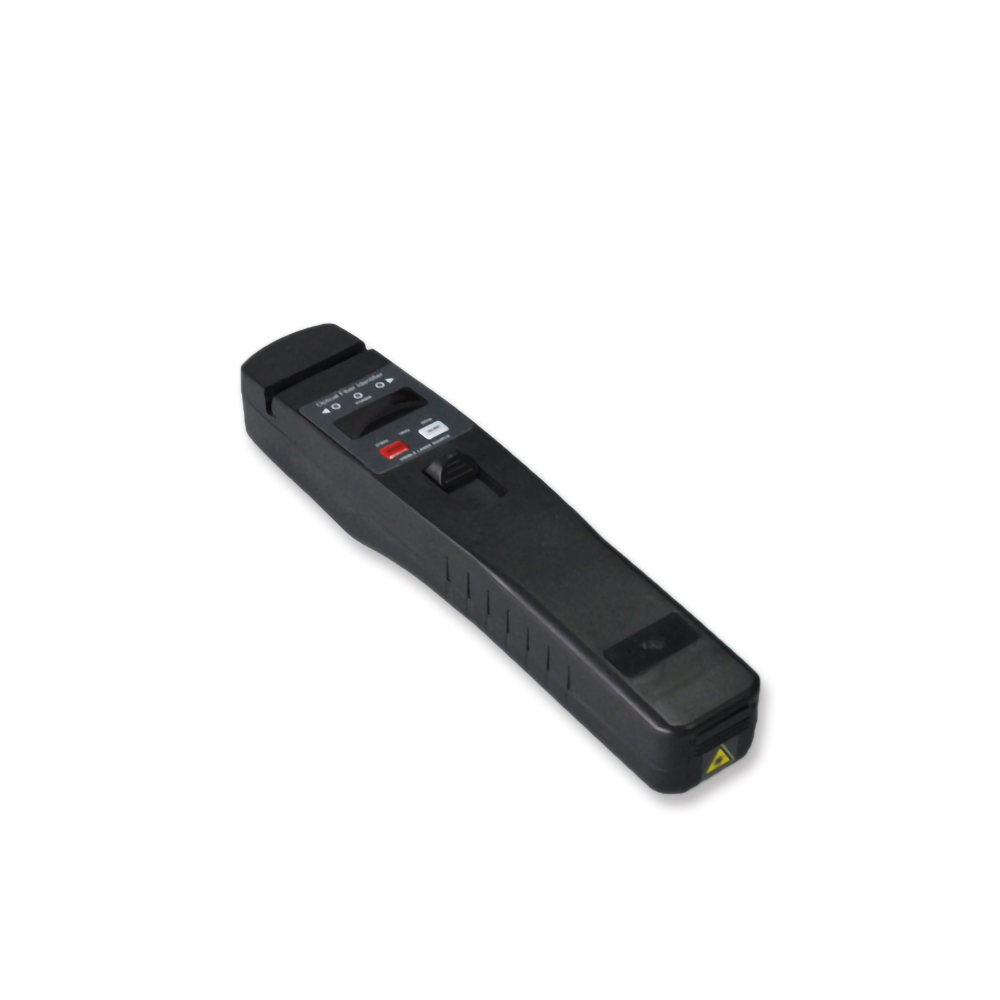

FCST080702 Optical Fiber Identifier

0 reviews
Goods No. FCST080702
Clicks 126
Market price: $170.67
Price $142.22
Twitter Instagram Facebook
FCST080702 Optical Fiber Identifier
FCST080702 Optical Fiber Identifier
$142.22

0 Goods Reviews

0
0
0
0
0

No reviews

Writing Reviews

Please enter your name!
It will appear in the comments.
Please enter a valid email address
Authentication only - No spam is sent.
Please select a rating!
Please write a review!!
Your review must be at least 50 characters.

Product Overview

FCST080702 Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function.Using the macro bending technology on line for nondestructive testing, FCST080702 can measure the signal direction and power and avoid misoperation resulting in interrupted lines.

Product Advantages

  • Lower power indication.
  • Don't need to replace adaptor.
  • Displays the relative core power.
  • tone (270Hz, 1KHz, 2KHz) with audible warning.
  • the signal presence or absence.(Live or dark fiber)
  • Efficiently identifies the traffic direction and frequency.
  • Indicate the signal directions and power in fiber Indicate.

Product Specifications

Construction Description
Model FCST080702 Optical Fiber Identifier
Identified Wavelength Range (nm) 800-1700
Insertion Loss 1.0dB
Fiber Type < 3mm Fiber
Identified Signal Type 270Hz/1KHz/2KHz
Display Type LED
Detector Type 1mm InGaAs
Minimum Detection Power -35dBm(1550nm)
-30dBm(1310nm)
Center Wavelength (nm) 650
Output Power 10mW
Alkaline Battery 0.8 (1310nm)
2.5 (1550nm)
Alkaline Battery (V) 2*AA
Battery Life > 60H
Operating Temperature 0~+50℃
Storage Temperature -20~+60℃
Weight (g) 200
Dimension (mm) 230*43*48

Standard Packages

Model Includes
All FCST080702 Models FCST080702 Optical Fiber Identifier, Alkaline battery, User Manual, Cotton
