Product Overview
FCST080620-E Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber break point , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock- proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , cable sequence proofreading, cable length measurement and | ighting functions. It could quick detection of break point, universal connector, . 600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .
Product Specifications
| Construction | Description |
|---|---|
| Wavelength | 1310nm/1550nm±20nm (1610 online test optional) |
| Fiber Type | G.652 SM Fiber |
| Dynamic Range | 24dB/22dB |
| Event Blind Zone | 3m |
| ATT Blind Zone | 8m |
| Test Range | 10m~60km |
| Pulse Width | 3ns~10us |
| Ranging Accuracy | ±(1m+Sampling Interval +0.005％×Test Distance) |
| Loss Accuracy | ±0.2dB/dB |
| Sampling Points | 16k~128k |
| Sampling Resolution | 0.05m~8m |
| Reflection Accuracy | ±3dB |
| Data Storage | Internal:≥600 External:TF Card |
| Laser Safety Level | Class Ⅱ level |
| File Format | SOR Standard File Format |
| Connector | FC/UPC（Interchangeable SC,ST） |
| OPM | |
| Wave Range | 800nm~1700nm |
| Interface Type | Universal Joint FC/SC/ST |
| Test Range | -50dBm～+26dBm |
| Uncertainty | ±5% |
| Frequency Identification | CW / 270 / 330 / 1k / 2kHz |
| Calibration Wavelength | 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 / 1650nm |
| LS | |
| LD Type | FP-LD |
| Output Wavelength | 1610nm±20nm 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm |
| Modulation Frequency | 270/330/1k/2kHz |
| Stability | CW,±0.5dB/15min(Test after15mins of preheating) |
| Connector | FC/UPC(Interchangeable SC,ST) |
| VFL | |
| Work Wavelength | 650nm±20nm |
| Output Power | ≥10mW |
| Mode | CW/1Hz/2Hz |
| Connector | FC/SC/ST |
| RJ45 Cable Length Measurement | |
| Test Range | 300m |
| Other Parameters | |
| Dispaly | 3.5 inch Color LCD |
| Data Interface | Micro USB |
| External Storage | TF Card |
| Power Supply | Polymer Li-battery:3.7V,4000mAh |
| Power Adapter | 5VDC,2A |
| Battery Life | Standby＞20h;Measuring Time＞12h |
| Operating Temperature | -10℃～+50℃ |
| Storage Temperature | -40℃～+70℃ |
| Relative Humidity | 0～95％Non Condensing |
| Weight | ≤350g |
| Length | 173mm丨6.811in |
| Width | 82mm丨3.228in |
| Height | 37mm丨1.457in |
Note:Test Temperature 25℃±2℃,Maximum pulse width,Average time≥3min.
Test conditions of Event Blind Zone are minimum range,minimum pulse width,reflection loss of optical end≥45dB,typical value.

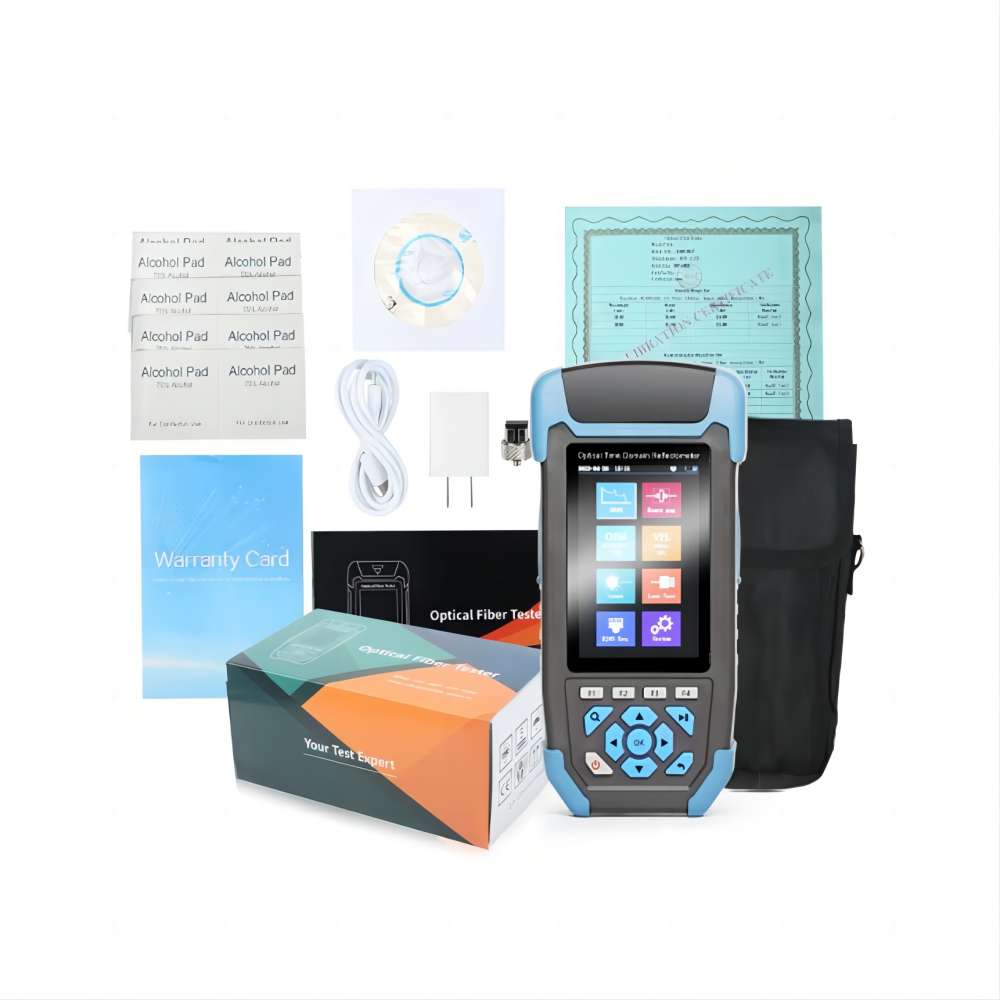

Configuration List
